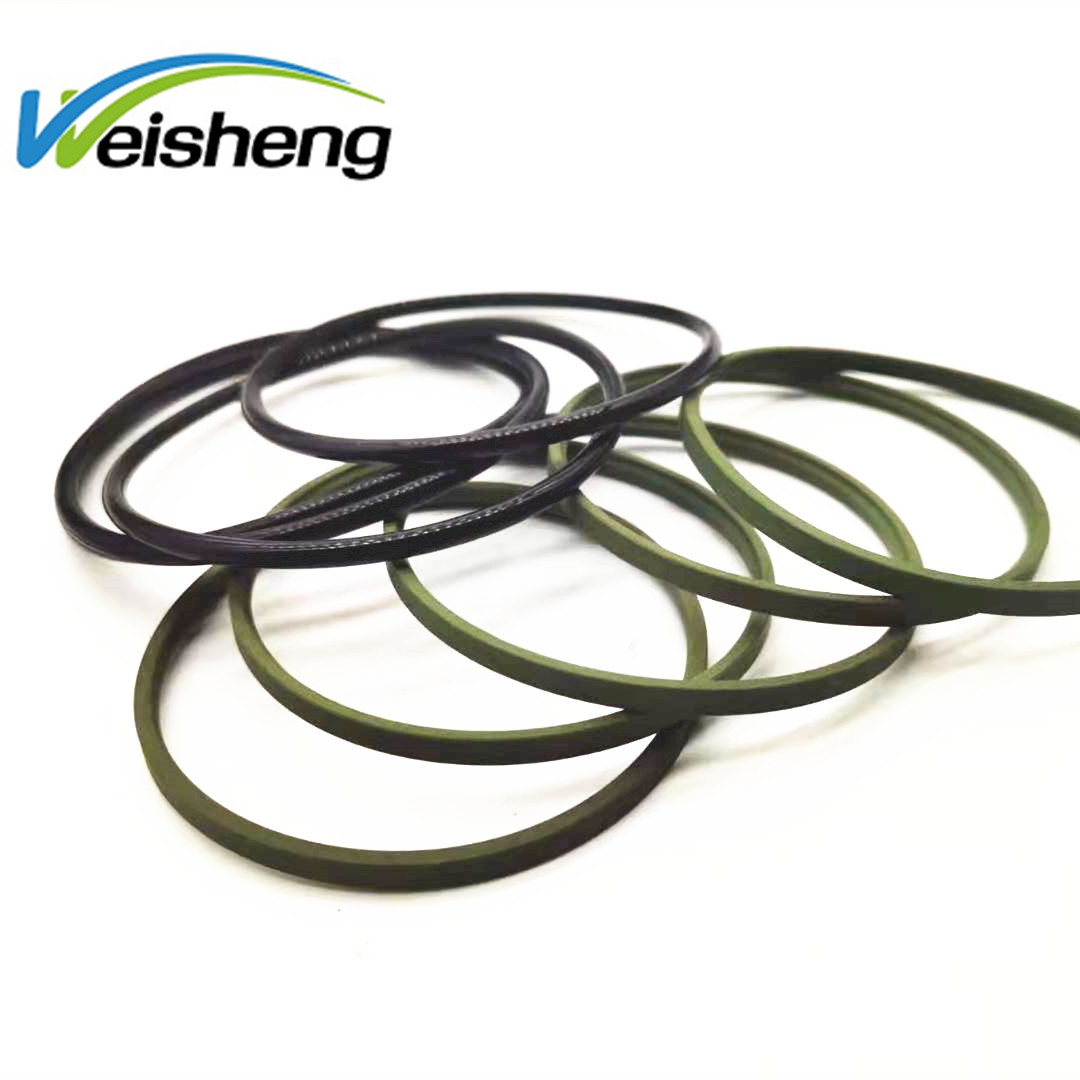

Hydraulic Seal GSJ ROD STD GREEN Bronze Filled Seal

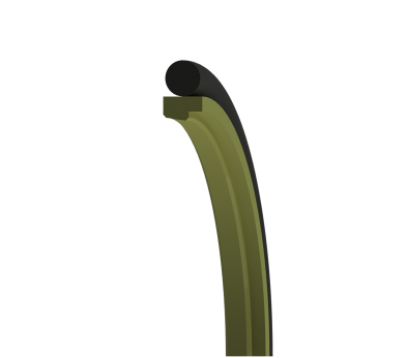

The rod sealing set profile GSJ is a typical single acting step seal, and is composed of a PTFE+bronze slide ring and an o-ring.

Characteristics

- Good static and dynamic sealing performance

- Good dimensional stability

- Easy assembly

- High resistance to extrusion

- Low friction with no stick-slip

- Buffering for strong pressure

GSJ020-3.2 20 27.5 3.2

GSJ020-4.2 20 31 4.2

GSJ022-3.2 22 29.5 3.2

GSJ022-4.2 22 33 4.2

GSJ0250 25 36 4.2

GSJ0280 28 39 4.2

GSJ0300 30 41 4.2

GSJ0320 32 43 4.2

GSJ0350 35 46 4.2

GSJ0360 36 47 4.2

GSJ038-4.2 38 49 4.2

GSJ038-6.3 38 53.5 6.3

GSJ040-4.2 40 51 4.2

GSJ040-6.3 40 55.5 6.3

GSJ042-4.2 42 53 4.2

GSJ042-6.3 42 57.5 6.3

GSJ045-4.2 45 56 4.2

GSJ045-6.3 45 60.5 6.3

GSJ050-4.2 50 61 4.2

GSJ050-6.3 50 65.5 6.3

GSJ055-4.2 55 66 4.2

GSJ055-6.3 55 70.5 6.3

GSJ056-4.2 56 67 4.2

GSJ056-6.3 56 71.5 6.3

GSJ060-4.2 60 71 4.2

GSJ060-6.3 60 75.5 6.3

GSJ063-4.2 63 74 4.2

GSJ063-6.3 63 78.5 6.3

GSJ0650 65 80.5 6.3

GSJ0700 70 85.5 6.3

GSJ0750 75 90.5 6.3

GSJ0800 80 95.5 6.3

GSJ0850 85 100.5 6.3

GSJ0900 90 105.5 6.3

GSJ0950 95 110.5 6.3

GSJ1000 100 115.5 6.3

GSJ1050 105 120.5 6.3

GSJ1100 110 125.5 6.3

GSJ1150 115 130.5 6.3

GSJ1200 120 135.5 6.3

GSJ1250 125 140.5 6.3

GSJ1300 130 145.5 6.3

GSJ1400 140 155.5 6.3

GSJ1450 145 160.5 6.3

GSJ1500 150 165.5 6.3

GSJ160-6.3 160 175.5 6.3

GSJ160-8.1 160 181 8.1

GSJ1650 165 180.5 6.3

GSJ1700 170 185.5 6.3

GSJ180-6.3 180 195.5 6.3

GSJ180-8.1 180 201 8.1

GSJ1900 190 205.5 6.3

GSJ2000 200 221 8.1

GSJ2100 210 231 8.1

GSJ2200 220 241 8.1

GSJ2300 230 251 8.1

GSJ2400 240 261 8.1

GSJ2500 250 271 8.1

GSJ2600 260 284.5 8.1

GSJ2700 270 294.5 8.1

GSJ2800 280 304.5 8.1

GSJ2900 290 314.5 8.1

GSJ3000 300 324.5 8.1

GSJ3100 310 334.5 8.1

GSJ3200 320 344.5 8.1

GSJ3400 340 364.5 8.1

GSJ3500 350 374.5 8.1

GSJ3600 360 384.5 8.1

GSJ3700 370 394.5 8.1

GSJ3800 380 404.5 8.1

GSJ3900 390 414.5 8.1

GSJ4000 400 424.5 8.1
